Linear Regression

Turing is powerful when applied to complex hierarchical models, but it can also be put to task at common statistical procedures, like linear regression. This tutorial covers how to implement a linear regression model in Turing.

Set Up

We begin by importing all the necessary libraries.

# Import Turing and Distributions.
using Turing, Distributions

# Import RDatasets.
using RDatasets

# Import MCMCChains, Plots, and StatPlots for visualizations and diagnostics.
using MCMCChains, Plots, StatsPlots

# Functionality for splitting and normalizing the data.
using MLDataUtils: shuffleobs, splitobs, rescale!

# Functionality for evaluating the model predictions.
using Distances

# Functionality for constructing arrays with identical elements efficiently.
using FillArrays

# Functionality for working with scaled identity matrices.
using LinearAlgebra

# Set a seed for reproducibility.
using Random
Random.seed!(0)

# Hide the progress prompt while sampling.
Turing.setprogress!(false);

We will use the mtcars dataset from the RDatasets package. mtcars contains a variety of statistics on different car models, including their miles per gallon, number of cylinders, and horsepower, among others.

We want to know if we can construct a Bayesian linear regression model to predict the miles per gallon of a car, given the other statistics it has. Lets take a look at the data we have.

# Import the "Default" dataset.
data = RDatasets.dataset("datasets", "mtcars");

# Show the first six rows of the dataset.
first(data, 6)
6×12 DataFrame
 Row │ Model              MPG      Cyl    Disp     HP     DRat     WT
 QS ⋯
     │ String31           Float64  Int64  Float64  Int64  Float64  Float64
 Fl ⋯
─────┼─────────────────────────────────────────────────────────────────────
─────
   1 │ Mazda RX4             21.0      6    160.0    110     3.9     2.62
    ⋯
   2 │ Mazda RX4 Wag         21.0      6    160.0    110     3.9     2.875
   3 │ Datsun 710            22.8      4    108.0     93     3.85    2.32
   4 │ Hornet 4 Drive        21.4      6    258.0    110     3.08    3.215
   5 │ Hornet Sportabout     18.7      8    360.0    175     3.15    3.44
    ⋯
   6 │ Valiant               18.1      6    225.0    105     2.76    3.46
                                                               5 columns om
itted
size(data)
(32, 12)

The next step is to get our data ready for testing. We'll split the mtcars dataset into two subsets, one for training our model and one for evaluating our model. Then, we separate the targets we want to learn (MPG, in this case) and standardize the datasets by subtracting each column's means and dividing by the standard deviation of that column. The resulting data is not very familiar looking, but this standardization process helps the sampler converge far easier.

# Remove the model column.
select!(data, Not(:Model))

# Split our dataset 70%/30% into training/test sets.
trainset, testset = splitobs(shuffleobs(data), 0.7)

# Turing requires data in matrix form.
target = :MPG
train = Matrix(select(trainset, Not(target)))
test = Matrix(select(testset, Not(target)))
train_target = trainset[:, target]
test_target = testset[:, target]

# Standardize the features.
μ, σ = rescale!(train; obsdim=1)
rescale!(test, μ, σ; obsdim=1)

# Standardize the targets.
μtarget, σtarget = rescale!(train_target; obsdim=1)
rescale!(test_target, μtarget, σtarget; obsdim=1);

Model Specification

In a traditional frequentist model using OLS, our model might look like:

$$ \mathrm{MPG}_i = \alpha + \boldsymbol{\beta}^\mathsf{T}\boldsymbol{X_i} $$

where $\boldsymbol{\beta}$ is a vector of coefficients and $\boldsymbol{X}$ is a vector of inputs for observation $i$. The Bayesian model we are more concerned with is the following:

$$ \mathrm{MPG}_i \sim \mathcal{N}(\alpha + \boldsymbol{\beta}^\mathsf{T}\boldsymbol{X_i}, \sigma^2) $$

where $\alpha$ is an intercept term common to all observations, $\boldsymbol{\beta}$ is a coefficient vector, $\boldsymbol{X_i}$ is the observed data for car $i$, and $\sigma^2$ is a common variance term.

For $\sigma^2$, we assign a prior of truncated(Normal(0, 100); lower=0). This is consistent with Andrew Gelman's recommendations on noninformative priors for variance. The intercept term ($\alpha$) is assumed to be normally distributed with a mean of zero and a variance of three. This represents our assumptions that miles per gallon can be explained mostly by our assorted variables, but a high variance term indicates our uncertainty about that. Each coefficient is assumed to be normally distributed with a mean of zero and a variance of 10. We do not know that our coefficients are different from zero, and we don't know which ones are likely to be the most important, so the variance term is quite high. Lastly, each observation $y_i$ is distributed according to the calculated mu term given by $\alpha + \boldsymbol{\beta}^\mathsf{T}\boldsymbol{X_i}$.

# Bayesian linear regression.
@model function linear_regression(x, y)
    # Set variance prior.
    σ² ~ truncated(Normal(0, 100); lower=0)

    # Set intercept prior.
    intercept ~ Normal(0, sqrt(3))

    # Set the priors on our coefficients.
    nfeatures = size(x, 2)
    coefficients ~ MvNormal(Zeros(nfeatures), 10.0 * I)

    # Calculate all the mu terms.
    mu = intercept .+ x * coefficients
    return y ~ MvNormal(mu, σ² * I)
end
linear_regression (generic function with 2 methods)

With our model specified, we can call the sampler. We will use the No U-Turn Sampler (NUTS) here.

model = linear_regression(train, train_target)
chain = sample(model, NUTS(0.65), 3_000)
Chains MCMC chain (3000×24×1 Array{Float64, 3}):

Iterations        = 1001:1:4000
Number of chains  = 1
Samples per chain = 3000
Wall duration     = 5.19 seconds
Compute duration  = 5.19 seconds
parameters        = σ², intercept, coefficients[1], coefficients[2], coeffi
cients[3], coefficients[4], coefficients[5], coefficients[6], coefficients[
7], coefficients[8], coefficients[9], coefficients[10]
internals         = lp, n_steps, is_accept, acceptance_rate, log_density, h
amiltonian_energy, hamiltonian_energy_error, max_hamiltonian_energy_error,
tree_depth, numerical_error, step_size, nom_step_size

Summary Statistics
        parameters      mean       std   naive_se      mcse         ess
  r ⋯
            Symbol   Float64   Float64    Float64   Float64     Float64   F
loa ⋯

                σ²    0.3117    0.1834     0.0033    0.0063    783.2997
1.0 ⋯
         intercept   -0.0016    0.1131     0.0021    0.0018   3502.6971
0.9 ⋯
   coefficients[1]   -0.0450    0.5486     0.0100    0.0145   1435.1582
1.0 ⋯
   coefficients[2]    0.3194    0.7314     0.0134    0.0216   1006.0850
1.0 ⋯
   coefficients[3]   -0.3857    0.3972     0.0073    0.0099   1616.0794
1.0 ⋯
   coefficients[4]    0.1694    0.2927     0.0053    0.0084   1266.8139
1.0 ⋯
   coefficients[5]   -0.3347    0.7274     0.0133    0.0236    843.4465
0.9 ⋯
   coefficients[6]    0.0764    0.3670     0.0067    0.0097   1230.1250
0.9 ⋯
   coefficients[7]    0.0123    0.3945     0.0072    0.0116   1415.7843
1.0 ⋯
   coefficients[8]    0.1782    0.3127     0.0057    0.0092   1075.5653
1.0 ⋯
   coefficients[9]    0.1111    0.2862     0.0052    0.0085   1007.7045
1.0 ⋯
  coefficients[10]   -0.2593    0.4142     0.0076    0.0145    795.1212
1.0 ⋯
                                                               2 columns om
itted

Quantiles
        parameters      2.5%     25.0%     50.0%     75.0%     97.5%
            Symbol   Float64   Float64   Float64   Float64   Float64

                σ²    0.1182    0.1931    0.2658    0.3720    0.7957
         intercept   -0.2377   -0.0717    0.0011    0.0687    0.2204
   coefficients[1]   -1.1493   -0.3834   -0.0425    0.2987    1.0444
   coefficients[2]   -1.1663   -0.1402    0.3273    0.7817    1.7194
   coefficients[3]   -1.1710   -0.6219   -0.3953   -0.1528    0.4414
   coefficients[4]   -0.4003   -0.0161    0.1712    0.3494    0.7630
   coefficients[5]   -1.7905   -0.8004   -0.3388    0.1256    1.0998
   coefficients[6]   -0.6517   -0.1630    0.0670    0.3126    0.8036
   coefficients[7]   -0.8004   -0.2296    0.0193    0.2623    0.8055
   coefficients[8]   -0.4758   -0.0140    0.1837    0.3747    0.8049
   coefficients[9]   -0.4626   -0.0696    0.1075    0.2929    0.6702
  coefficients[10]   -1.1081   -0.5109   -0.2541   -0.0036    0.5771

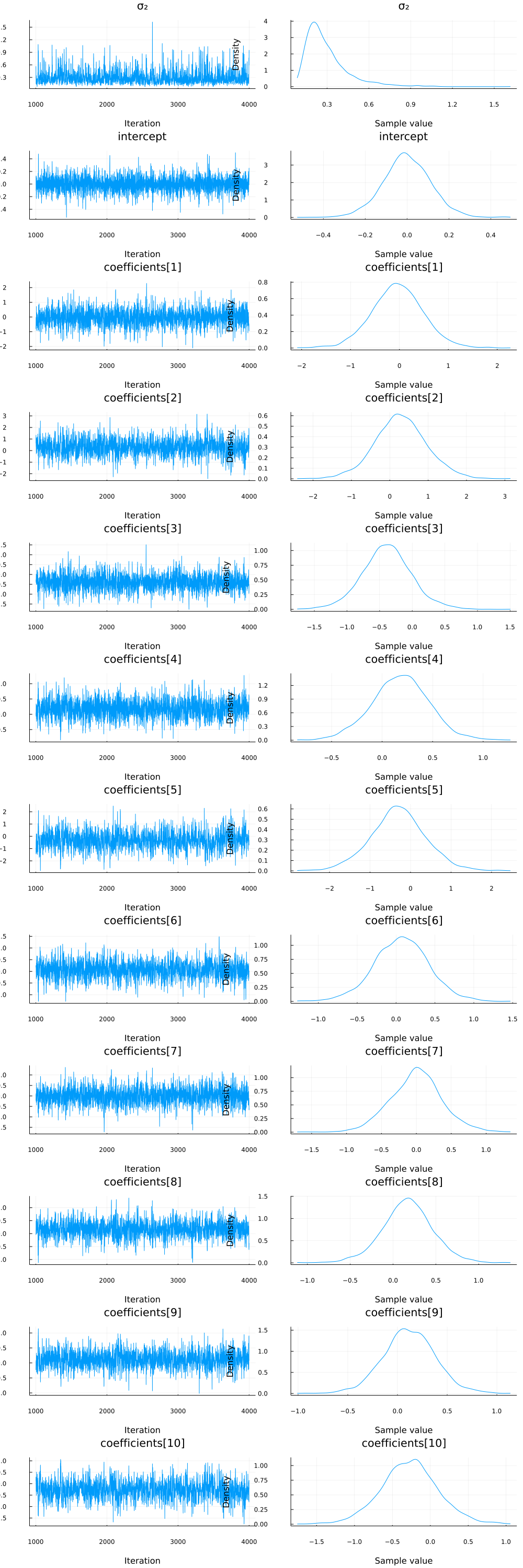

We can also check the densities and traces of the parameters visually using the plot functionality.

plot(chain)

It looks like all parameters have converged.

Comparing to OLS

A satisfactory test of our model is to evaluate how well it predicts. Importantly, we want to compare our model to existing tools like OLS. The code below uses the GLM.jl package to generate a traditional OLS multiple regression model on the same data as our probabilistic model.

# Import the GLM package.
using GLM

# Perform multiple regression OLS.
train_with_intercept = hcat(ones(size(train, 1)), train)
ols = lm(train_with_intercept, train_target)

# Compute predictions on the training data set
# and unstandardize them.
p = GLM.predict(ols)
train_prediction_ols = μtarget .+ σtarget .* p

# Compute predictions on the test data set
# and unstandardize them.
test_with_intercept = hcat(ones(size(test, 1)), test)
p = GLM.predict(ols, test_with_intercept)
test_prediction_ols = μtarget .+ σtarget .* p;

The function below accepts a chain and an input matrix and calculates predictions. We use the samples of the model parameters in the chain starting with sample 200, which is where the warm-up period for the NUTS sampler ended.

# Make a prediction given an input vector.
function prediction(chain, x)
    p = get_params(chain[200:end, :, :])
    targets = p.intercept' .+ x * reduce(hcat, p.coefficients)'
    return vec(mean(targets; dims=2))
end
prediction (generic function with 1 method)

When we make predictions, we unstandardize them so they are more understandable.

# Calculate the predictions for the training and testing sets
# and unstandardize them.
p = prediction(chain, train)
train_prediction_bayes = μtarget .+ σtarget .* p
p = prediction(chain, test)
test_prediction_bayes = μtarget .+ σtarget .* p

# Show the predictions on the test data set.
DataFrame(; MPG=testset[!, target], Bayes=test_prediction_bayes, OLS=test_prediction_ols)
10×3 DataFrame
 Row │ MPG      Bayes     OLS
     │ Float64  Float64   Float64
─────┼─────────────────────────────
   1 │    19.2  17.9818   18.1265
   2 │    15.0   6.67636   6.37891
   3 │    16.4  13.8408   13.883
   4 │    14.3  11.8707   11.7337
   5 │    21.4  25.1902   25.1916
   6 │    18.1  20.6603   20.672
   7 │    19.7  15.9947   15.8408
   8 │    15.2  18.292    18.3391
   9 │    26.0  28.4566   28.4865
  10 │    17.3  14.5441   14.534

Now let's evaluate the loss for each method, and each prediction set. We will use the mean squared error to evaluate loss, given by $$ \mathrm{MSE} = \frac{1}{n} \sum_{i=1}^n {(y_i - \hat{y_i})^2} $$ where $y_i$ is the actual value (true MPG) and $\hat{y_i}$ is the predicted value using either OLS or Bayesian linear regression. A lower SSE indicates a closer fit to the data.

println(
    "Training set:",
    "\n\tBayes loss: ",
    msd(train_prediction_bayes, trainset[!, target]),
    "\n\tOLS loss: ",
    msd(train_prediction_ols, trainset[!, target]),
)

println(
    "Test set:",
    "\n\tBayes loss: ",
    msd(test_prediction_bayes, testset[!, target]),
    "\n\tOLS loss: ",
    msd(test_prediction_ols, testset[!, target]),
)
Training set:
	Bayes loss: 4.651083751584832
	OLS loss: 4.648142085690521
Test set:
	Bayes loss: 14.10580325710221
	OLS loss: 14.796847779051523

As we can see above, OLS and our Bayesian model fit our training and test data set about the same.
